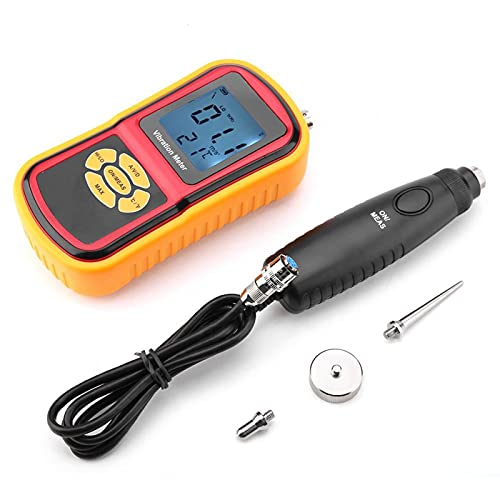

Digital GM63B Vibration Meter with LCD Display & 3 Probes (0-40℃) - Precision Vibration Measurement Tool for Mechanical Watches, Motors, Fans, Bearings - Ideal for Industrial Maintenance & Equipment Monitoring

Specification: Condition: 100% Brand New Model: GM63B Technical parameter Technical specification Vibration pickup Piezoelectric ceramic accelerometer (shear-type) Measurement range of acceleration 0.1-199.9m/s Measurement range of velocity 0.1-199.9mm/s rms Measurement range of displacement 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2 Measurement accuracy ±5%±2digits Measurement frequency range of acceleration 10Hz-1KHz (LO) 1KHz-15KHz (HI) Measurement frequency range of velocity 10Hz-1KHz (LO) Measurement frequency range of displacement 10Hz-1KHz (LO) Displays update cycle 1 seconds LCD display 3 1/2 digits display Single output AC output 2 V peak (display full scale) Load impedance 10KΩ or more earphones can be connected Power supply 9V battery(not included) Stand-by current ≤15uA Operating current ≤25mA Battery life 20 H continuous use Auto power-off function Turns off automatically after 60 seconds LCD backlight function 7 seconds Operating temperature range 0-40℃ Operating humidity range 30-90%RH Low battery indication 6.4V±0.2V Temperature range -10℃-80℃ Temperature accuracy ±2℃ Weight: Approx. 1104g / 38.9oz Size: Approx. 72 * 35 * 145mm / 2.8 * 1.4 * 5.7in Package List: 1 Set of Vibration Meter 1 * Box

MULIT-FUNCTION-- Low battery indication, auto turn off function, LCD back light function, maximum value hold function, temperature unit C°/F°selection.

SUITABLE FOR--Suitable for mechanical watches, motors, fans and bearings.

LCD DISPLAY MEASUREMENT--LCD display measurement result and conditions directly. Digital Vibration Meter ,Selective vibration characteristic. LCD Display Vibration Meter ,Using vibration sensor make it more accurate to measure.

VIBRATION METER--Equipped two probes (S and L) to adapt the different measurement requirement.

WHAT WILL YOU GET--1 Set of Vibration Meter; 1 * Box.
